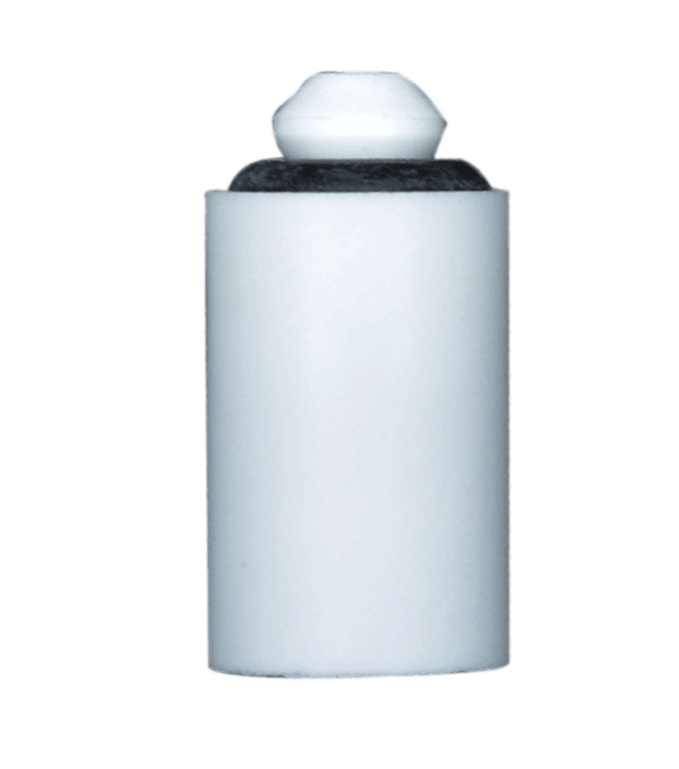

CRV Series Cartridge Insert Valves On Pneuline Supply, Inc.

These Cartridge Insert Valves can be installed into tubing lines or glued into manifolds. The optional housing materials are Nylon, Polypropylene, Acrylic, Acetal, PVDF, and Polycarbonate. Springs are 316 Stainless Steel or Hastelloy® (1/2 psi). O-Rings are of Buna-N, EPDM, FKM, Silicone and Kalrez. Available sizes are 1/4″, 5/16", 3/8", 1/2″, 5/8" and 3/4" OD. Standard crack pressure for all valves except 3/4″ OD is 3" H₂O 0.1 psi, 5 psi, or 1.5 psi.

Item #	Item Name	Series	Size	Pressure Rating	Material
CRV-12-11-PPB	N/A CRV Series 1/2 Inch (in) Size and 11 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/2 in	N/A 11 psi	N/A Polypropylene
CRV-14-10PPE	N/A CRV Series 1/4 Inch (in) Size and 10 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 10 psi	N/A Polypropylene
CRV-14-3-PPE	N/A CRV Series 1/4 Inch (in) Size and 3 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 3 psi	N/A Polypropylene
CRV-14-PB-.5	N/A CRV Series 1/4 Inch (in) Size and 0.5 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 0.5 psi	N/A Polypropylene
CRV-14-PB-1	N/A CRV Series 1/4 Inch (in) Size and 1 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 1 psi	N/A Polypropylene
CRV-14-PB-1.5	N/A CRV Series 1/4 Inch (in) Size and 1.5 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 1.5 psi	N/A Polypropylene
CRV-14-PB-2	N/A CRV Series 1/4 Inch (in) Size and 2 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 2 psi	N/A Polypropylene
CRV-14-PE-.1	N/A CRV Series 1/4 Inch (in) Size and 0.1 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 0.1 psi	N/A Polypropylene
CRV-14-PV-.1	N/A CRV Series 1/4 Inch (in) Size and 0.1 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 0.1 psi	N/A Polypropylene
CRV-14-PV-.5	N/A CRV Series 1/4 Inch (in) Size and 0.5 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 0.5 psi	N/A Polypropylene
CRV-14-PV-1	N/A CRV Series 1/4 Inch (in) Size and 1 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 1 psi	N/A Polypropylene
CRV-14-PV-10	N/A CRV Series 1/4 Inch (in) Size and 10 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 10 psi	N/A Polypropylene
CRV-14-PV-2	N/A CRV Series 1/4 Inch (in) Size and 2 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 2 psi	N/A Polypropylene
CRV-14-PV-5	N/A CRV Series 1/4 Inch (in) Size and 5 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 5 psi	N/A Polypropylene
CRV-38-2-PPV	N/A CRV Series 3/8 Inch (in) Size and 2 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 3/8 in	N/A 2 psi	N/A Polypropylene
CRV-38-PB-7-5 WC	N/A CRV Series 3/8 Inch (in) Size and 7.5 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 3/8 in	N/A 7.5 psi	N/A Polypropylene
CRV-38-PPB-1	N/A CRV Series 3/8 Inch (in) Size and 1 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 3/8 in	N/A 1 psi	N/A Polypropylene
CRV4-1/10-NB	N/A CRV Series 1/10# 1/4 Inch (in) Size Insert Valve	N/A CRV	N/A 1/4 in	N/A	N/A Nylon
CRV4-1/2H-PPV	N/A Hastelloy® CRV Series 1/2# 1/4 Inch (in) Size O-Ring Insert Valve	N/A CRV	N/A 1/4 in	N/A	N/A Polypropylene
CRV4-10PPE	N/A CRV Series 10# 1/4 Inch (in) Size Insert Valve	N/A CRV	N/A 1/4 in	N/A	N/A Polypropylene
CRV4-4PPB	N/A CRV Series 4# 1/4 Inch (in) Size Insert Valve	N/A CRV	N/A 1/4 in	N/A	N/A Polypropylene
CRV-4-P-V-.5	N/A CRV Series 1/4 Inch (in) Size and 0.50 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 0.5 psi	N/A Polypropylene
CRV-4-P-V-1	N/A CRV Series 1/4 Inch (in) Size and 1 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 1 psi	N/A Polypropylene
CRV-4-PV-6WC	N/A CRV Series 1/4 Inch (in) Size Insert Valve	N/A CRV	N/A 1/4 in	N/A	N/A Polypropylene
CRV-4-WP-V-.25	N/A CRV Series 1/4 Inch (in) Size and 0.25 Pounds per Square Inch (psi) Insert Valve	N/A CRV	N/A 1/4 in	N/A 0.25 psi	N/A Polypropylene
