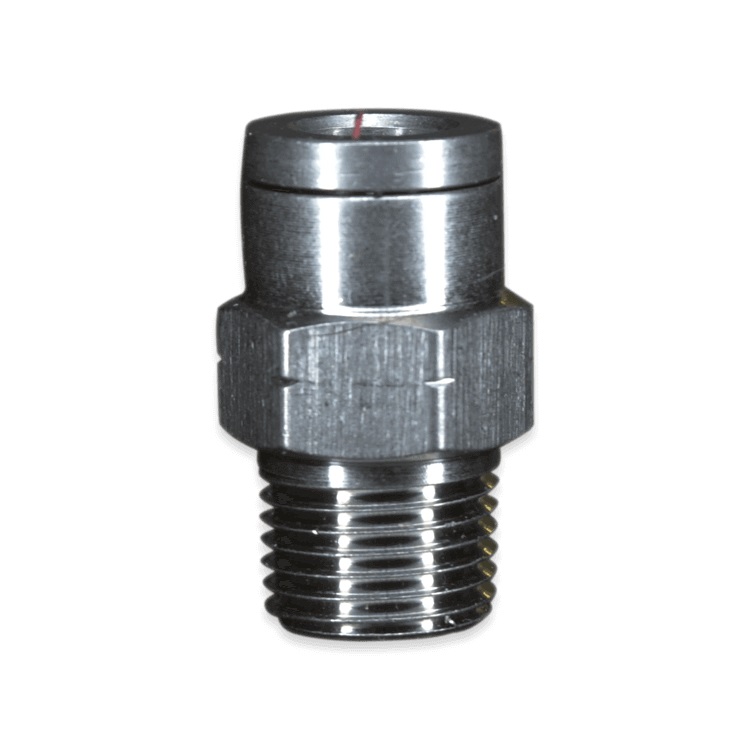

  • TCM Series Straight Connector Fittings
TCM series are straight connectors made of 316 stainless steel. One end is smooth for easy attachment of tubing and the other has male threads below a hex nut for tightening. Also, it has a working pressure of 290 psi and a temperature range of -4 ºF to 302 ºF. The sterilization temperature is up to 280 ºF. The O-ring is Viton®. BSPT is also available.
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Thread Size

Thread Type

Outer Diameter (OD)

Material

N/A TCM Series 10-32 Size Male Unified National Fine (UNF) Thread and 5/32 Inch (in) Outer Diameter (OD) Connector Fitting N/A 10-32 N/A Male Unified National Fine (UNF) N/A 5/32 in N/A 316 Stainless Steel
N/A TCM Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) and 1/4 Inch (in) Outer Diameter (OD) Connector Fitting N/A 1/8 in N/A Male National Pipe Thread (MNPT) N/A 1/4 in N/A 316 Stainless Steel
N/A TCM Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) and 3/16 Inch (in) Outer Diameter (OD) Connector Fitting N/A 1/8 in N/A Male National Pipe Thread (MNPT) N/A 3/16 in N/A 316 Stainless Steel
N/A TCM Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) and 5/16 Inch (in) Outer Diameter (OD) Connector Fitting N/A 1/8 in N/A Male National Pipe Thread (MNPT) N/A 5/16 in N/A 316 Stainless Steel
N/A TCM Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) and 5/32 Inch (in) Outer Diameter (OD) Connector Fitting N/A 1/8 in N/A Male National Pipe Thread (MNPT) N/A 5/32 in N/A 316 Stainless Steel
N/A TCM Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 3/16 Inch (in) Outer Diameter (OD) Connector Fitting N/A 1/4 in N/A Male National Pipe Thread (MNPT) N/A 3/16 in N/A 316 Stainless Steel
N/A TCM Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 1/4 Inch (in) Outer Diameter (OD) Connector Fitting N/A 1/4 in N/A Male National Pipe Thread (MNPT) N/A 1/4 in N/A 316 Stainless Steel
N/A TCM Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 5/16 Inch (in) Outer Diameter (OD) Connector Fitting N/A 1/4 in N/A Male National Pipe Thread (MNPT) N/A 5/16 in N/A 316 Stainless Steel
N/A TCM Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 3/8 Inch (in) Outer Diameter (OD) Connector Fitting N/A 1/4 in N/A Male National Pipe Thread (MNPT) N/A 3/8 in N/A 316 Stainless Steel
N/A TCM Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 1/2 Inch (in) Outer Diameter (OD) Connector Fitting N/A 1/4 in N/A Male National Pipe Thread (MNPT) N/A 1/2 in N/A 316 Stainless Steel
