Item # |
Item Name |
Thread Size |
Thread Type |
Barb Size |
Barb Style |
|---|---|---|---|---|---|

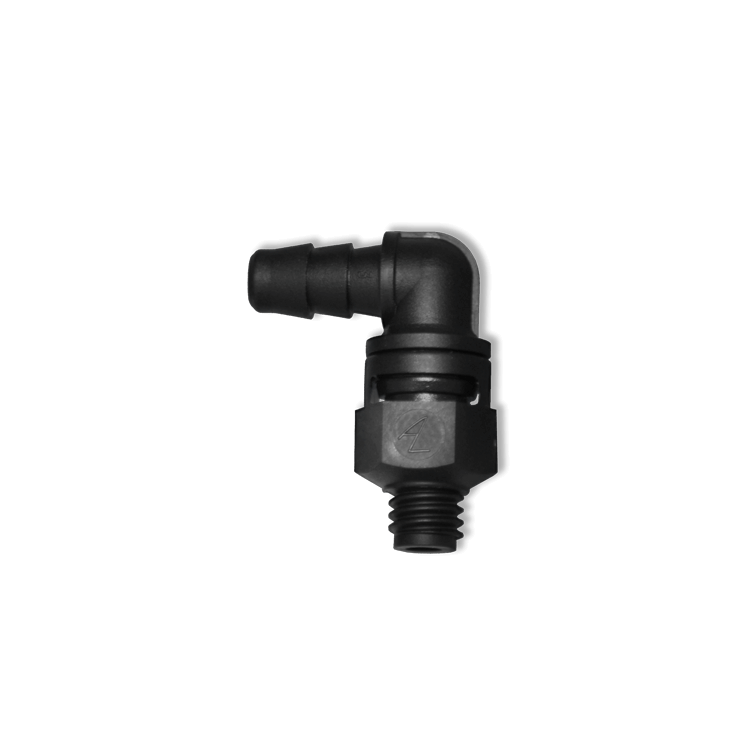

| ALS-IG-10X1B /Asset/ALS-IG-Series.png | N/A ALS-IG Series 10-32 Size Male Unified National Fine (UNF) and 1/16 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 10-32 | Thread Type N/A Male Unified National Fine (UNF) | Barb Size N/A 1/16 in | Barb Style N/A Single Barbed |
| ALS-IG-10X332B /Asset/ALS-IG-Series.png | N/A ALS-IG Series 10-32 Size Male Unified National Fine (UNF) and 3/32 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 10-32 | Thread Type N/A Male Unified National Fine (UNF) | Barb Size N/A 3/32 in | Barb Style N/A Single Barbed |
| ALS-IG-10X2B /Asset/ALS-IG-Series.png | N/A ALS-IG Series 10-32 Size Male Unified National Fine (UNF) and 1/8 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 10-32 | Thread Type N/A Male Unified National Fine (UNF) | Barb Size N/A 1/8 in | Barb Style N/A Single Barbed |
| ALS-IG-2MX1B /Asset/ALS-IG-Series.png | N/A ALS-IG Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) and 1/16 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 1/8 in | Thread Type N/A Male National Pipe Thread (MNPT) | Barb Size N/A 1/16 in | Barb Style N/A Single Barbed |
| ALS-IG-2MX332B /Asset/ALS-IG-Series.png | N/A ALS-IG Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) and 3/32 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 1/8 in | Thread Type N/A Male National Pipe Thread (MNPT) | Barb Size N/A 3/32 in | Barb Style N/A Single Barbed |
| ALS-IG-2MX2B /Asset/ALS-IG-Series.png | N/A ALS-IG Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) and 1/8 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 1/8 in | Thread Type N/A Male National Pipe Thread (MNPT) | Barb Size N/A 1/8 in | Barb Style N/A Single Barbed |
| ALS-IG-4MX1B /Asset/ALS-IG-Series.png | N/A ALS-IG Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 1/16 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 1/4 in | Thread Type N/A Male National Pipe Thread (MNPT) | Barb Size N/A 1/16 in | Barb Style N/A Single Barbed |
| ALS-IG-4MX332B /Asset/ALS-IG-Series.png | N/A ALS-IG Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 3/32 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 1/4 in | Thread Type N/A Male National Pipe Thread (MNPT) | Barb Size N/A 3/32 in | Barb Style N/A Single Barbed |
| ALS-IG-4MX2B /Asset/ALS-IG-Series.png | N/A ALS-IG Series 1/4 Inch (in) Size Male National Pipe Thread (MNPT) and 1/8 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 1/4 in | Thread Type N/A Male National Pipe Thread (MNPT) | Barb Size N/A 1/8 in | Barb Style N/A Single Barbed |
| 3492 /Asset/SFE-Series.jpg | N/A SFE Series 1/2 to 2 Inch (in) Size Female National Pipe Thread (FNPT) and 1/2 to 1-1/2 Inch (in) Barb Size Swivel Elbow | Thread Size N/A 1 in1/2 in1-1/2 in1-1/4 in2 in3/4 in | Thread Type N/A Female National Pipe Thread (FNPT) | Barb Size N/A 1/2 to 1-1/2 in | Barb Style N/A |
