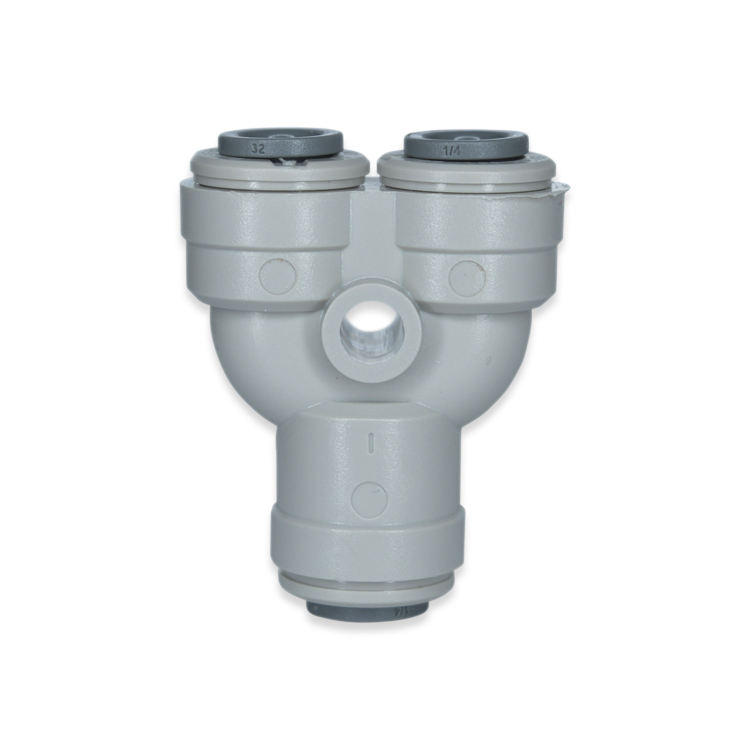

  • PY Series Push-to-Connect Straight Divider Wyes
Push-to-Connect Straight Divider Wye connectors available in Acetal, Polypropylene, and Kynar® used to split or reduce tubing connections of Polyethylene, Brass, or Copper. Sizes range from 1/4 inch OD to 3/8 inch OD including reducing sizes. Available in 1 inlet to 2 outlets, or 1 inlet to 3 outlets. Gray or White Acetal are NSF and FDA-approved and have Buna seals for use in air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140ºF at 60 psi for Polypropylene.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Series

Outer Diameter (OD)

Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene

Connection Type

N/A PY Series 1/4 Inch (in) Outer Diameter (OD) Equal Inlet/Outlet Push-to-Connect Wye N/A PY N/A 1/4 in N/A 140 ºF N/A Push-to-Connect
N/A PY Series 5/16 Inch (in) Outer Diameter (OD) Equal Inlet/Outlet Push-to-Connect Wye N/A PY N/A 5/16 in N/A 140 ºF N/A Push-to-Connect
N/A PY Series 3/8 to 5/16 Inch (in) Outer Diameter (OD) Dual Inlet/Outlet Push-to-Connect Wye N/A PY N/A 3/8 to 5/16 in N/A 140 ºF N/A Push-to-Connect
N/A PY Series 3/8 Inch (in) Outer Diameter (OD) Equal Inlet/Outlet Push-to-Connect Wye N/A PY N/A 3/8 in N/A 140 ºF N/A Push-to-Connect
N/A PY Series 1/2 Inch (in) Outer Diameter (OD) Equal Inlet/Outlet Push-to-Connect Wye N/A PY N/A 1/2 in N/A 140 ºF N/A Push-to-Connect
