Item # |
Item Name |
Series |
Outer Diameter (OD) |
Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene |
Connection Type |
|---|---|---|---|---|---|

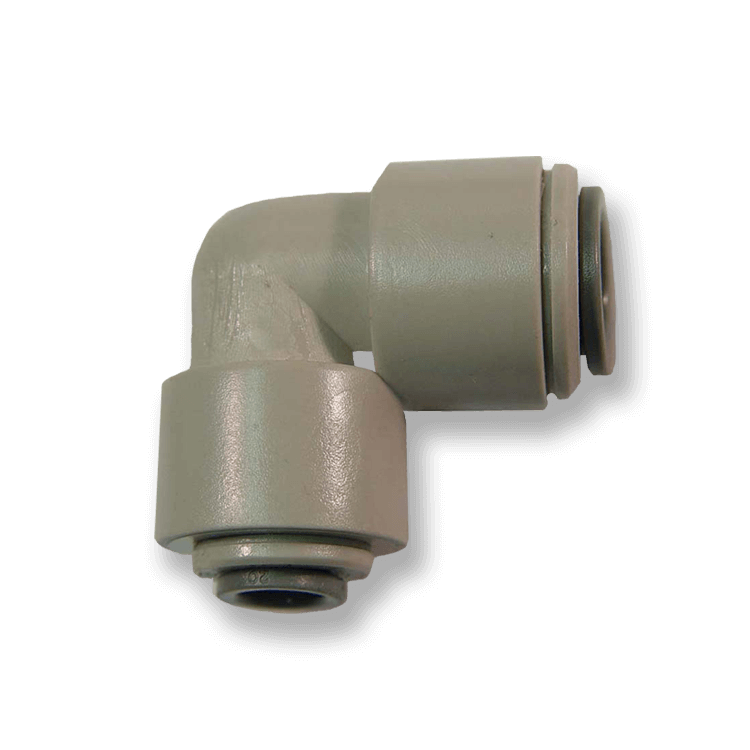

| PE-3 /Asset/PE-Series.png | N/A PE Series 3/16 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 3/16 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-4 /Asset/PE-Series.png | N/A PE Series 1/4 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-532 /Asset/PE-Series.png | N/A PE Series 5/32 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 5/32 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-5-3 /Asset/PE-Series.png | N/A PE Series 5/16 x 3/16 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 5/16 x 3/16 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-5-4 /Asset/PE-Series.png | N/A PE Series 5/16 x 1/4 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 5/16 x 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-5-532 /Asset/PE-Series.png | N/A PE Series 5/16 x 5/32 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 5/16 x 5/32 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-5 /Asset/PE-Series.png | N/A PE Series 5/16 x Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 5/16 x in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-6-3 /Asset/PE-Series.png | N/A PE Series 3/8 x 3/16 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 3/8 x 3/16 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-6-4 /Asset/PE-Series.png | N/A PE Series 3/8 x 1/4 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 3/8 x 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-6-5 /Asset/PE-Series.png | N/A PE Series 3/8 x 5/16 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 3/8 x 5/16 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-6 /Asset/PE-Series.png | N/A PE Series 3/8 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 3/8 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PE-8-6 /Asset/PE-Series.png | N/A PE Series 1/2 x 3/8 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PE | Outer Diameter (OD) N/A 1/2 x 3/8 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PEB-4 /Asset/PEB-Series.jpg | N/A PEB Series 1/4 Inch (in) Stem x 1/4 Inch (in) Barb Outer Diameter (OD) Elbow | Series N/A PEB | Outer Diameter (OD) N/A 1/4 x 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Stem x Barb |
| PEB-4S5 /Asset/PEB-Series.jpg | N/A PEB Series 1/4 Inch (in) Stem x 5/16 Inch (in) Barb Outer Diameter (OD) Elbow | Series N/A PEB | Outer Diameter (OD) N/A 1/4 x 5/16 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Stem x Barb |
| PEB-5 /Asset/PEB-Series.jpg | N/A PEB Series 5/16 Inch (in) Stem x 5/16 Inch (in) Barb Outer Diameter (OD) Elbow | Series N/A PEB | Outer Diameter (OD) N/A 5/16 x 5/16 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Stem x Barb |
| PEB-5S4 /Asset/PEB-Series.jpg | N/A PEB Series 5/16 Inch (in) Stem x 1/4 Inch (in) Barb Outer Diameter (OD) Elbow | Series N/A PEB | Outer Diameter (OD) N/A 5/16 x 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Stem x Barb |
| PEB-5S5 /Asset/PEB-Series.jpg | N/A PEB Series 5/16 Inch (in) Stem x 5/16 Inch (in) Barb Outer Diameter (OD) Elbow | Series N/A PEB | Outer Diameter (OD) N/A 5/16 x 5/16 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Stem x Barb |
| PEB-6 /Asset/PEB-Series.jpg | N/A PEB Series 3/8 Inch (in) Stem x 3/8 Inch (in) Barb Outer Diameter (OD) Elbow | Series N/A PEB | Outer Diameter (OD) N/A 3/8 x 3/8 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Stem x Barb |
| PEB-6S4 /Asset/PEB-Series.jpg | N/A PEB Series 3/8 Inch (in) Stem x 1/4 Inch (in) Barb Outer Diameter (OD) Elbow | Series N/A PEB | Outer Diameter (OD) N/A 3/8 x 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Stem x Barb |
| PEB-6S5 /Asset/PEB-Series.jpg | N/A PEB Series 3/8 Inch (in) Stem x 5/16 Inch (in) Barb Outer Diameter (OD) Elbow | Series N/A PEB | Outer Diameter (OD) N/A 3/8 x 5/16 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Stem x Barb |
| PFE-4F4 /Asset/PFE-Series.png | N/A PFE Series 1/4 Inch (in) Female National Pipe Thread (FNPT) x 1/4 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PFE | Outer Diameter (OD) N/A 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A | Connection Type N/A Push-to-Connect |
| PFE-6F4 /Asset/PFE-Series.png | N/A PFE Series 3/8 Inch (in) Female National Pipe Thread (FNPT) x 1/4 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PFE | Outer Diameter (OD) N/A 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A | Connection Type N/A Push-to-Connect |
| PFE-6F6 /Asset/PFE-Series.png | N/A PFE Series 3/8 Inch (in) Female National Pipe Thread (FNPT) x 3/8 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PFE | Outer Diameter (OD) N/A 3/8 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A | Connection Type N/A Push-to-Connect |
| PME-2M4 /Asset/PME-Series.png | N/A PME Series 1/8 Inch (in) Male National Pipe Thread (MNPT) x 1/4 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PME | Outer Diameter (OD) N/A 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
| PME-4M4 /Asset/PME-Series.png | N/A PME Series 1/4 Inch (in) Male National Pipe Thread (MNPT) x 1/4 Inch (in) Outer Diameter (OD) Push-to-Connect Elbow | Series N/A PME | Outer Diameter (OD) N/A 1/4 in | Maximum Temperature at 60 Pounds per Square Inch (PSI) Pressure for Polypropylene N/A 140 ºF | Connection Type N/A Push-to-Connect |
