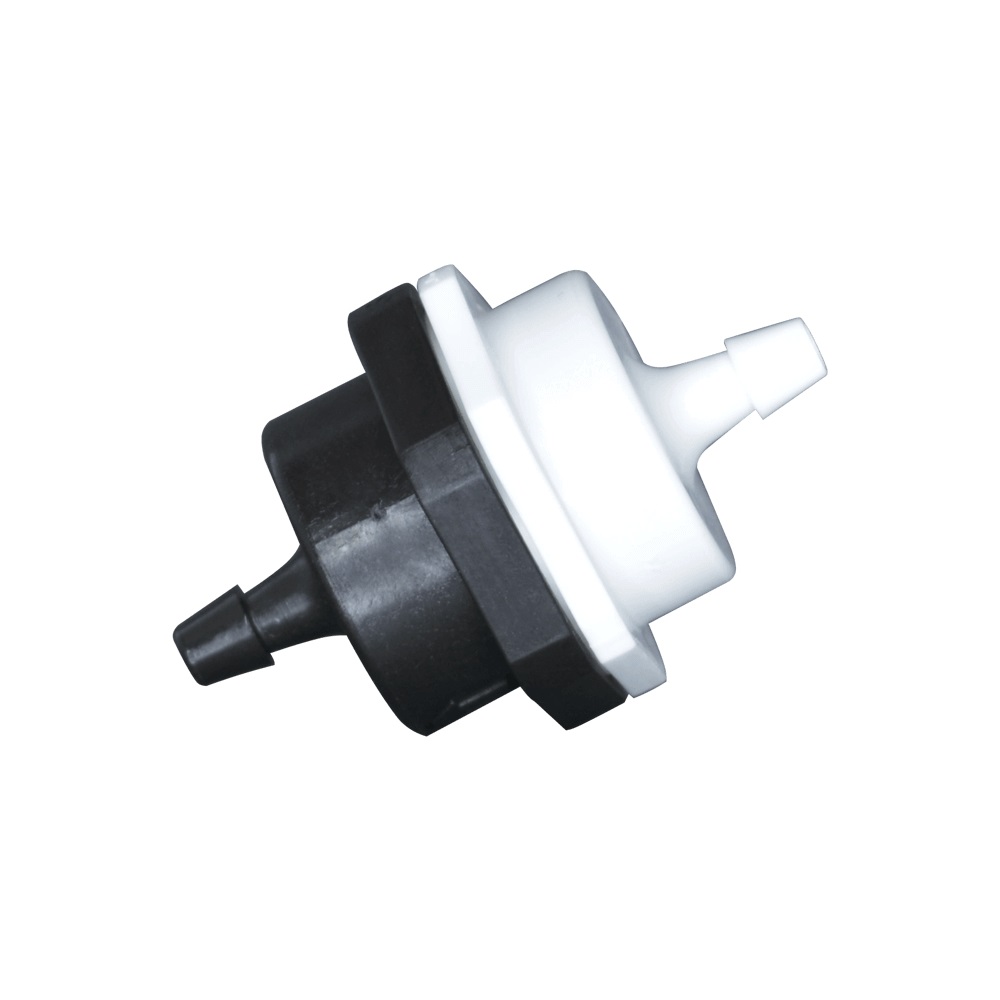

This check valve is made of either white polypropylene, natural Nylon, or black or natural Polyvinylidene Fluoride (PVDF). It is available with a Buna-N, EPDM, or Fluorocarbon (FKM) seal. It has a 302 stainless steel spring. The cracking pressure is 0.25 or 1 psi. The maximum pressure is 125 psi and the maximum operating temperature is 140ºF. The ports can be single or multi-barbed.
Unit of Measure

Technical Specs

Operating Pressure

 N/A 0.25 psi1 psi

Maximum Operating Pressure

 N/A 125 psi

Maximum Operating Temperature

 N/A 140 ºF

Material

 N/A Black and Natural Polyvinylidene Fluoride (PVDF) Natural Nylon White Polypropylene

Seal Material

 N/A Ethylene Propylene Diene Monomer (EPDM) Fluorocarbon (FKM) Nitrile Butadiene Rubber (Buna-N)

Note

Note

 N/A If you do not see exactly what you are looking for, please contact our sales department.
