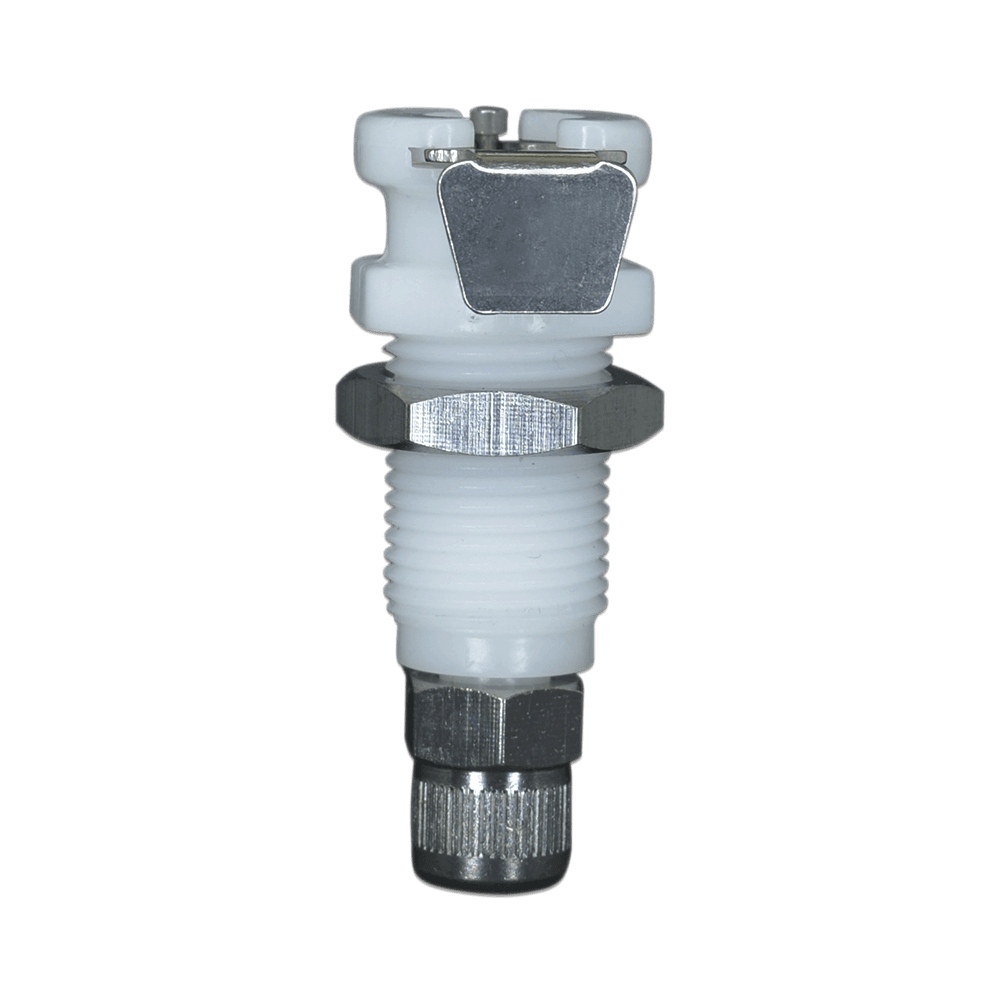

40 Series Socket, Panel Mount with Compression Fitting for 1/4 OD and 3/8 OD Tubing.

Available with or without a shut off. Compression Nut is Nickel-Plated Brass. Stainless Steel Latch and spring.

Used with a 0.688 Thru hole. Nickel Plated Brass Panel nut is a 13/16 Hex with 11/16-24 threads.
Unit of Measure

Technical Specs

Series

 N/A 40AC S8

Tube Inner Diameter (ID)

 N/A 0.250 in

Barb Inner Diameter (ID)

 N/A 0.375 in

Length

 N/A 1.87 in

Width

 N/A 0.75 in

Note

Note

 N/A If you do not see exactly what you are looking for, please contact our sales department.
