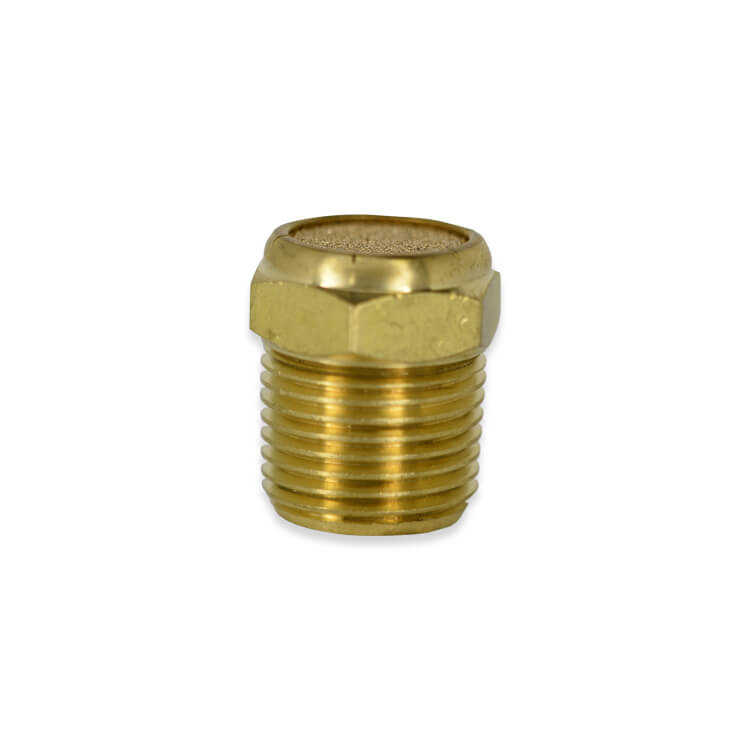

The ATBV Series is a low-profile breather vent used for vacuum relief or pressure equalization for gearboxes or storage vessels. It is available in Brass, Zinc-Plated Steel, and Nickel-Plated Steel. The maximum operating pressure is 150 psi and the temperature range is 35ºF to 300ºF for all materials. The filter element is sintered Bronze with a standard of 40 microns with 10 and 90 microns available. Male thread sizes range from 10-32 inch UNF to 1-1/2 inch NPT.
N/AIf you do not see exactly what you are looking for, please contact our sales department.
Additional Information
Additional Information
N/ASAE Breather Vents are also available in Brass with a 70-micron sintered Bronze screen. The male thread sizes are 7/16”-20, 9/16”-18, 3/4”-16, 7/8”-14 and 1-1/16”-12. The psi and working temperatures are the same as above.
