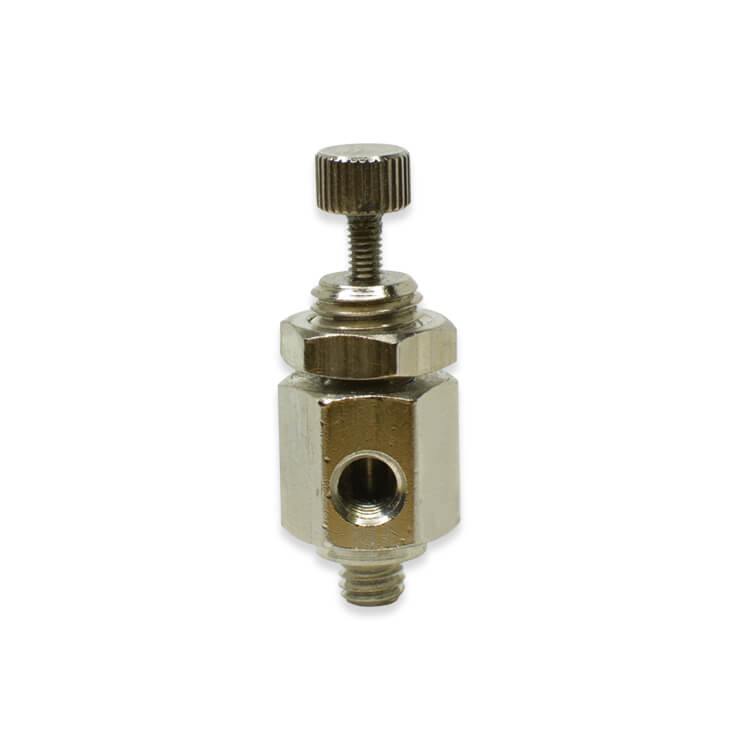

Mini Brass 90º Needle Valve with an inlet of 10-32 male threads. Outlet sizes are female 10-32 threads, male 10-32 threads or 1/16", 1/8" and 3/32" barbs. Available seals are Buna-N, EPDM, and Viton®. The maximum operating pressure is 125 psi. Panel mount is standard.
Unit of Measure

Technical Specs

Series

 N/A PNFC

Inlet Thread Size

 N/A 10-32

Inlet Thread Type

 N/A Taper Male

Outlet Thread Size

 N/A 10-32

Outlet Thread Type

 N/A Female

Maximum Operating Pressure

 N/A 125 psi

Elbow Angle

 N/A 90 º

Material

 N/A Brass

Note

Note

 N/A If you do not see exactly what you are looking for, please contact our sales department.
