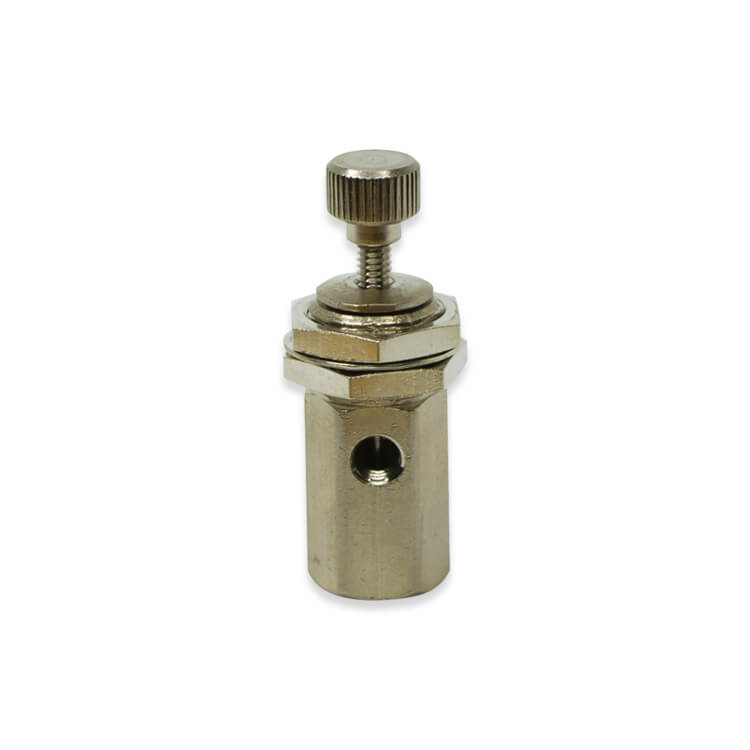

Mini Brass 90º Needle Valve with an inlet of 10-32 male threads. Outlet sizes are female 10-32 threads, male 10-32 threads or 1/16", 1/8" and 3/32" barbs. Available seals are Buna-N, EPDM, and Viton®. The maximum operating pressure is 125 psi, maximum operating temperature is 180º F. Panel mount is standard.
Unit of Measure

Technical Specs

Series

 N/A MNV

Thread Size

 N/A 10-32

Thread Type

 N/A Female

Maximum Operating Temperature

 N/A 180 ºF

Maximum Operating Pressure

 N/A 125 psi

Material

 N/A Nickel

Note

Note

 N/A If you do not see exactly what you are looking for, please contact our sales department.
