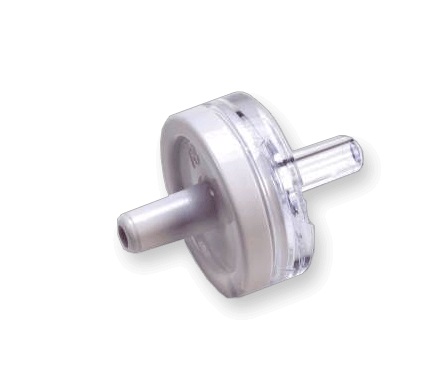

This is a non-barbed Check Valve with a white tubing port inlet and clear tubing port outlet. The body is made of Acrylic with a blue Silicone diaphragm. This check valve is pressure-rated at 45 psi. The port sizes are both .130" and will accommodate 1/16" ID soft Silicone tubing as well as other tubing of 1/8" and 3/32" ID. It is manufactured in an ISO Class 8 Cleanroom and is Gamma, E-beam, and EtO sterilizable. This valve is made of Class VI approved materials, it is ultrasonically welded and is 100% inline tested for backflow and weld leaks.
Unit of Measure

Technical Specs

Series

N/A CIS

Port Size

N/A 0.130 in

Crack Pressure

N/A 0.29 psi

Note

Note

N/A If you do not see exactly what you are looking for, please contact our sales department.
